CBS-880I Horizontal Band Sealer

CBS-880I Horizontal Band Sealer

$814.50
$814.50
Sale Sold out

Suitable for sealing all types of plastic materials and bags.  One of our most popular band sealers with a great value propositions.  Can seal 20-26 6" wide poly bags per minute.

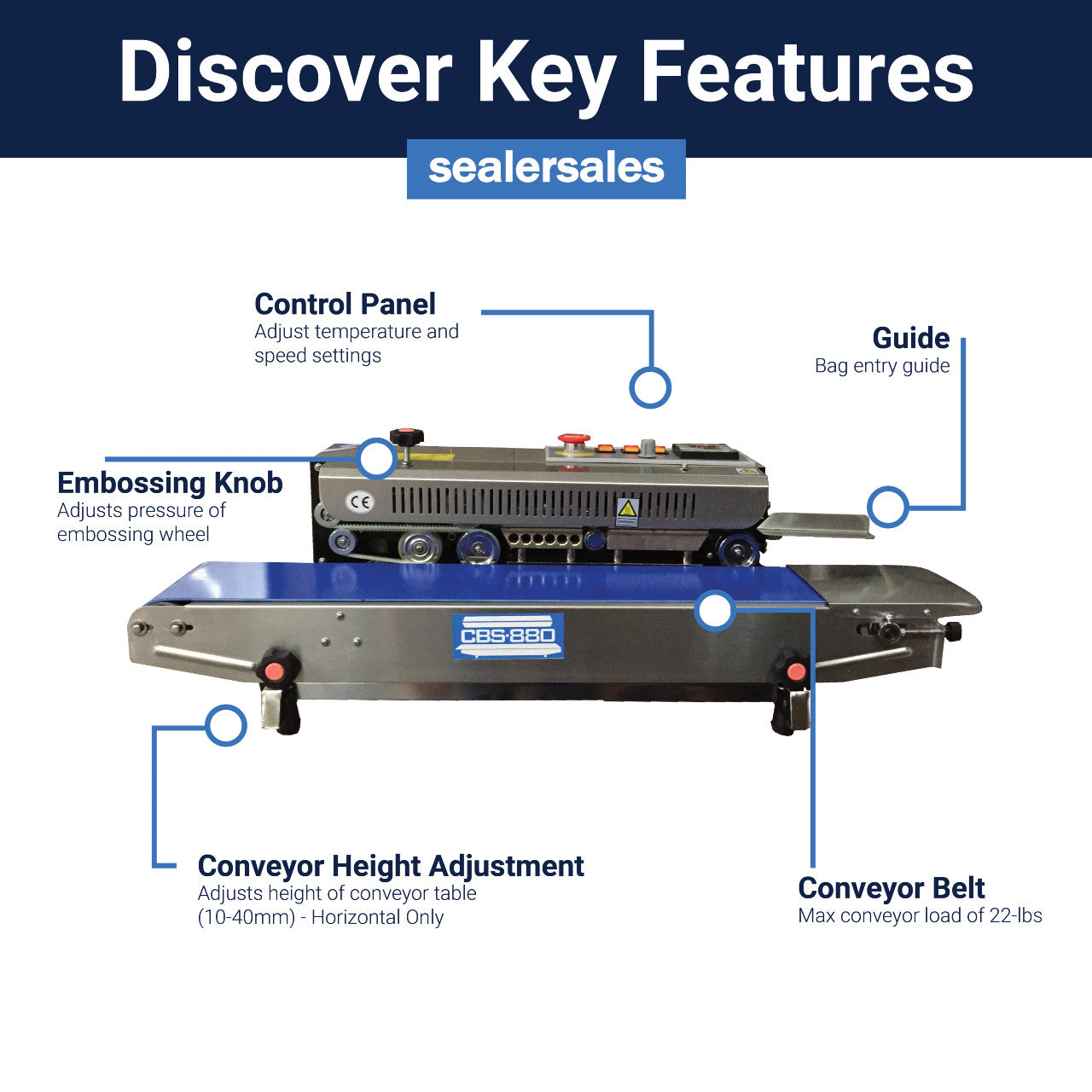

FEATURES:

  • Durable stainless steel

  • Easy to operate - minimal operator training

  • Fast warm up time

  • Seals any thermoplastic material including PE, PP, and laminates

  • Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality

  • Motorized rubber conveyor with speed control

  • Knurled pressure wheel rolls with variable pressure adjustment

  • One pair each of cooling and heating blocks

  • Sealing method - constant direct heat

  • Unit feeds right to left

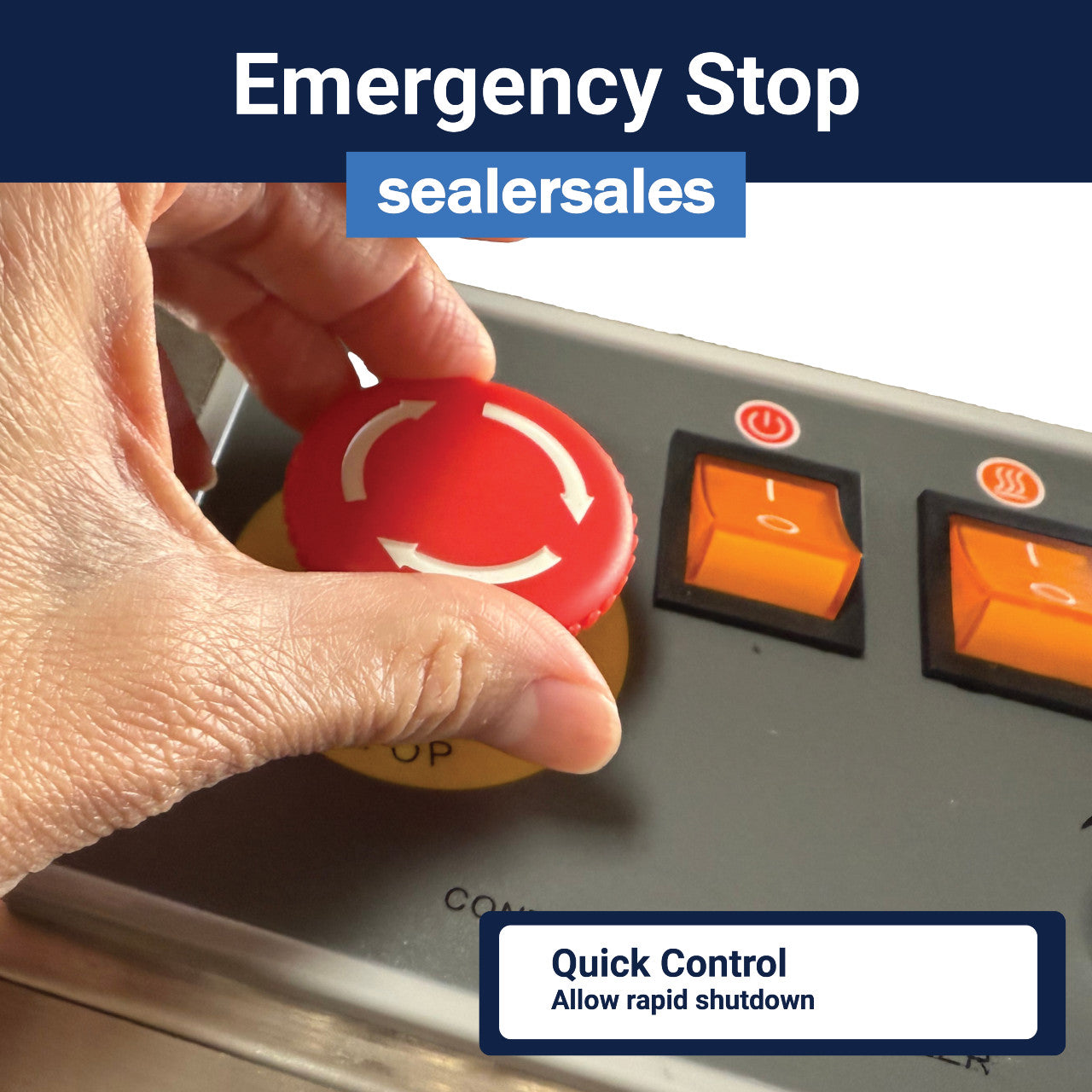

  • Equipped with an emergency stop button

  • Can easily be converted to a vertical configuration with an optional converting kit

  • Spare parts include:  PTFE sealing belt, drive belt, PC Board, tools, and type set

OPTIONAL FEATURES:

  • 2-line embossing wheel

  • Stainless steel stand for horizontal units only

  • 15mm seal width

  • Digital counter to keep track of sealed packages

Header 1 Header 2
Power 110V / 60Hz
Motor Power 50W
Sealing Speed 0-630"/min
Seal Width 8MM
Temperature Range 0-300°C
Conveyor Size 38" x 7"
Single Conveyor Load 2.2lbs
Max. Conveyor Load 6.6lbs
Character Size 3 x 4 x 9mm
Optional Embossing 1 Line Embossing (3 sections with 15 characters/line)
Dimensions 33" x 17" x 13"
Weight (lbs) 66



Unboxing Sealer Sales CBS-880 Band Sealer from Sealer Sales on Vimeo.

Download CBS-880 Band Sealer Specification Sheet for more information
