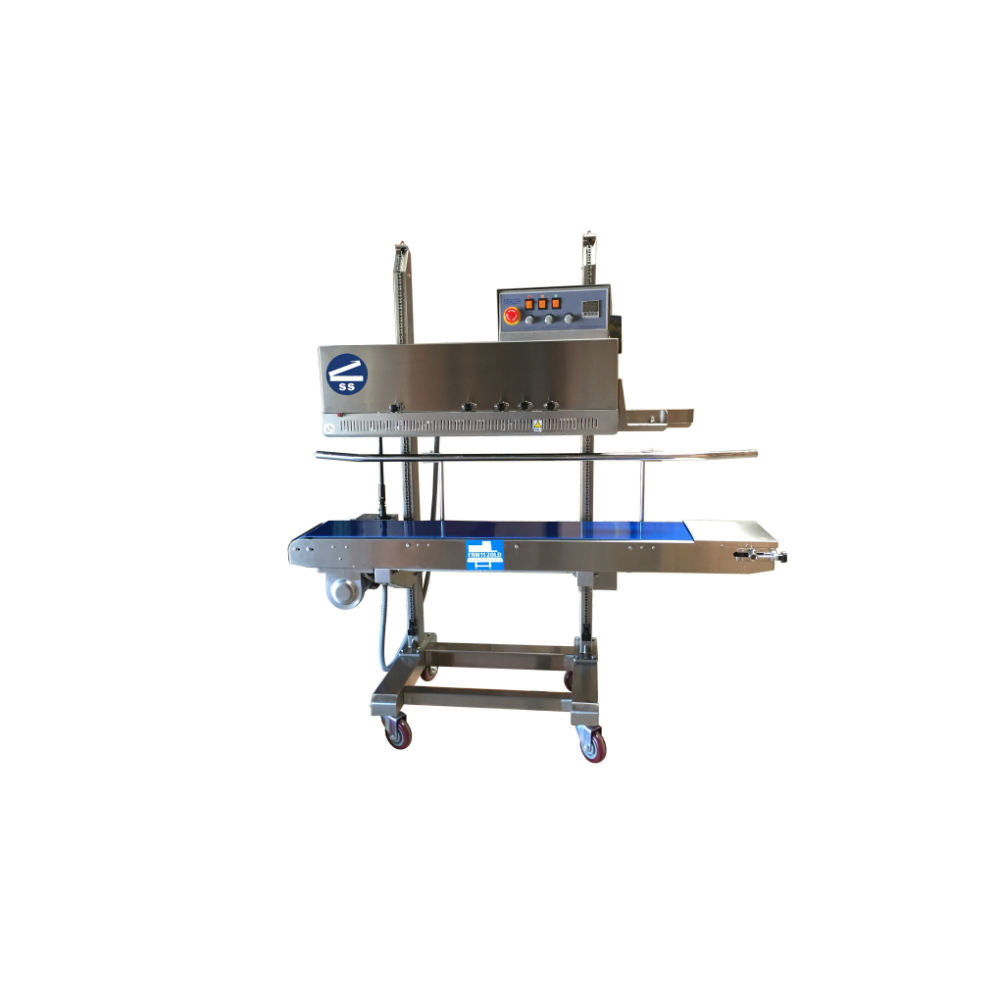

HLC-1120LD Vertical Band Sealer

HLC-M1120LD is suitable for sealing all types of thermoplastic materials and bags. This unit is equipped with a trim scrap system for trimming excess material. The vertical configuration is ideal for sealing stand up pouches and liquid-type products. This sealer can be used in a variety of fields such as the food, medical, and cosmetic industries. HLc-M1120LD is our most versatile band sealing capable of sealing bag heights of 4" - 27" and up to a single load of 11-lbs.

FEATURES:

• Adjustable height of both sealing head and conveyor belt providing maximum capacity of bag sizes

• Durable stainless steel construction

• Easy to operate - minimal operator training

• Fast warm up time

• Trim scrap on material - send us your material to test

• Ideal for medium duty and heavy duty applications

• Vertical configuration makes this suitable for any product including liquids

• Solid state digital temperature controller that maintains the seal bars at a proper temperature for consistent seal quality

• Motorized rubber conveyor for speed control

• Knurled pressure wheels with variable pressure adjustment

• Sealing method - constant/direct heat accompanied with a pair each of cooling and heating blocks

• Fully adjustable conveyor (both height and depth of conveyor in relation to seal bars can be adjusted)

• Unit feeds from right to left (Optional: left to right feed available)

• Equipped with an emergency stop button

• Spare Kit includes: PC Board, PTFE belt, wheel belt, fuse, motor brush, heating element, and silica gel ring

• Unit ships via LTL freight only. Contact us for freight rates

OPTIONAL FEATURES:

• Left to right configuration (now a stock option!)

• 15mm seal width

• Digital counter to keep track of sealed packages
