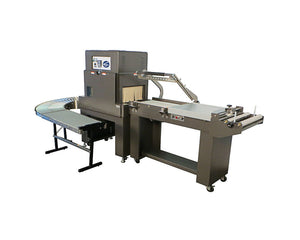

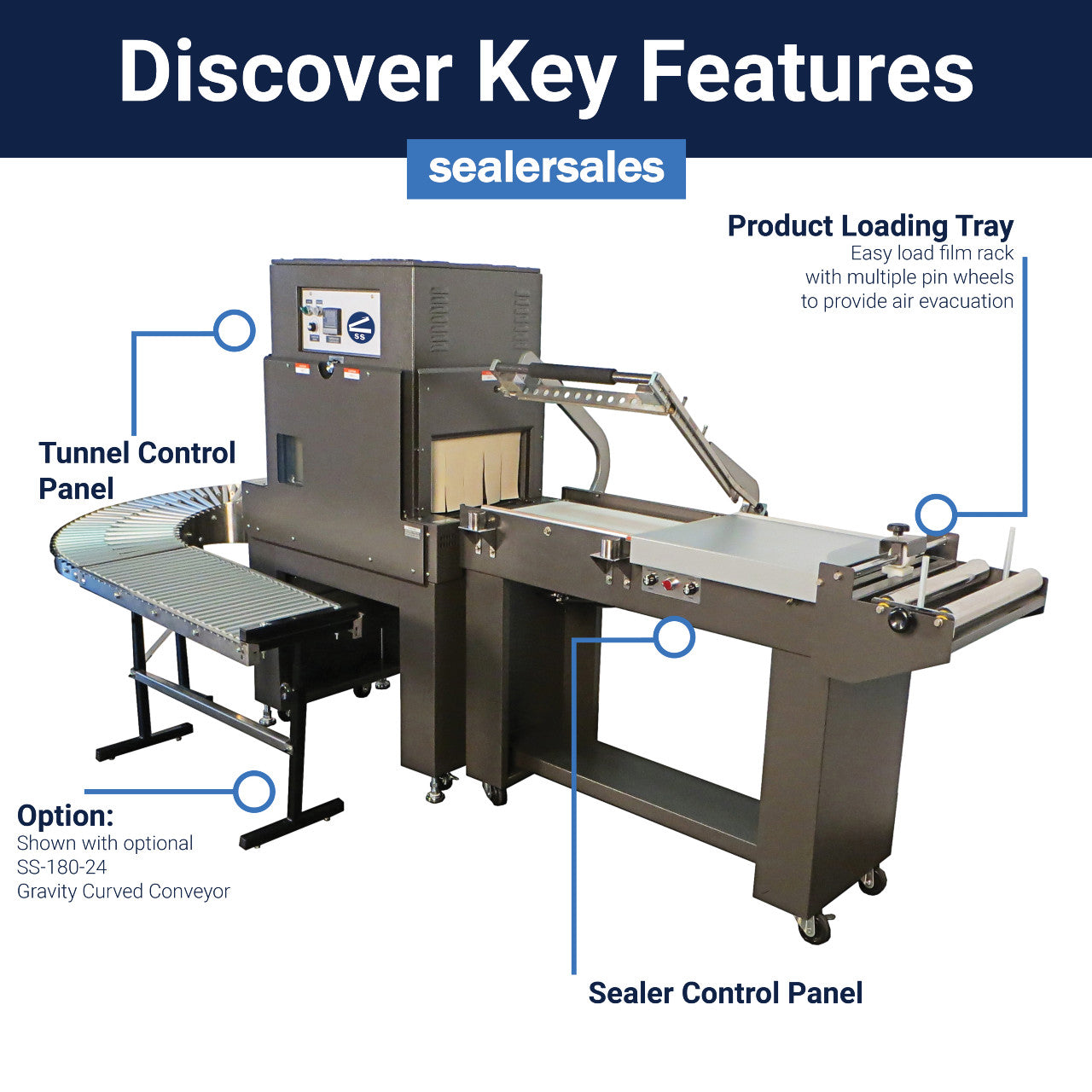

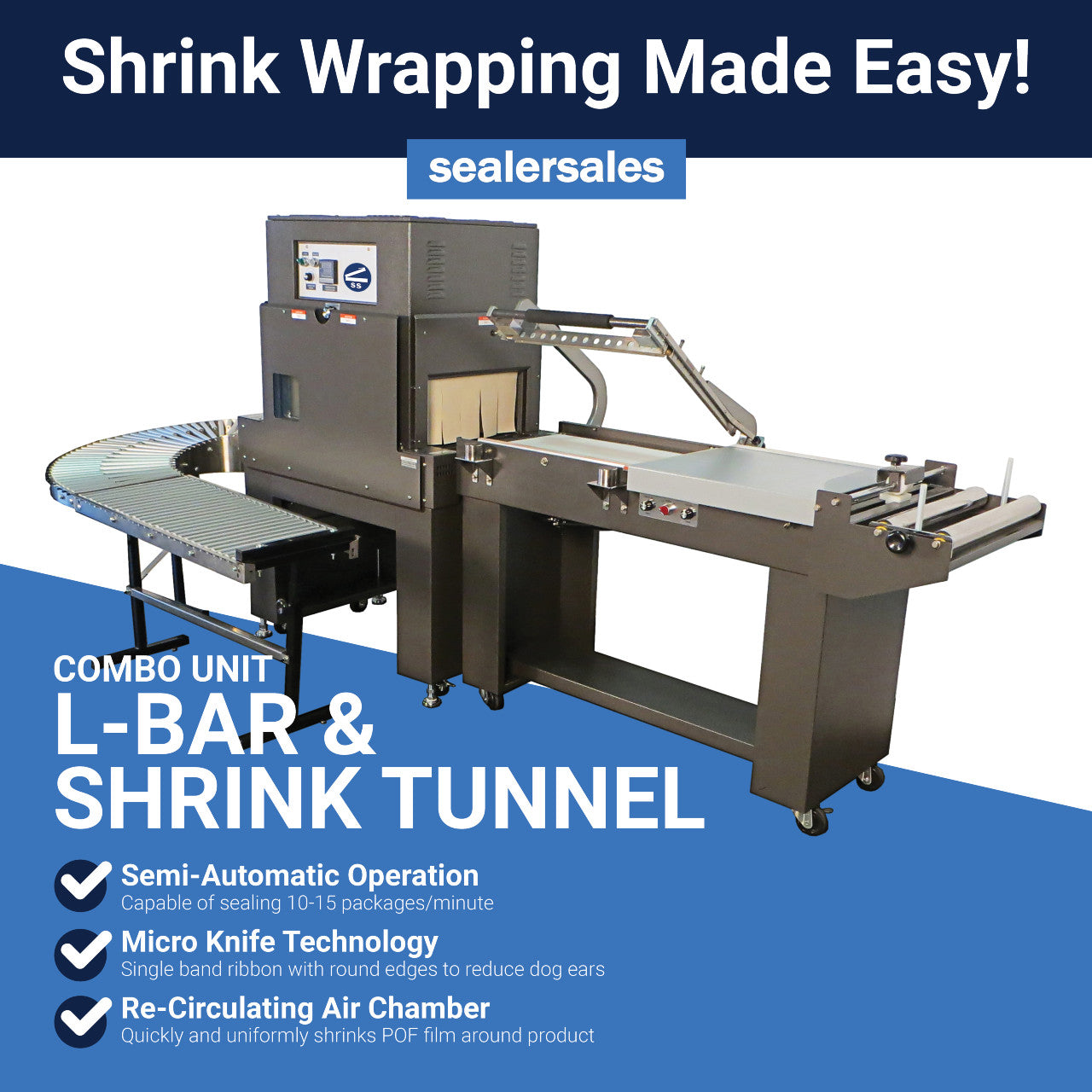

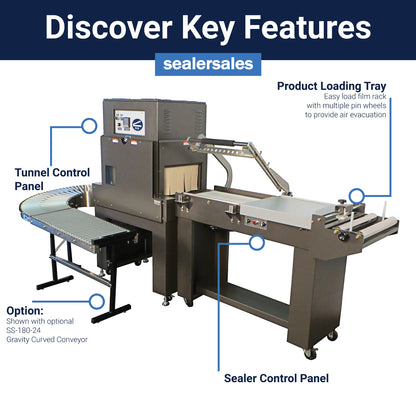

SS-1622MK Combo Shrink Tunnel & L-Bar Sealer

Our SS-1622MK-Combo L-bar sealer and shrink tunnel  is the first fully adjustable combination L-bar sealer with attached shrink tunnel including the latest “Micro-Knife” technology.  No more seal wires to replace!  The L-bar sealer is mounted on linear bearings which can easily move forward or backward to center the product into the tunnel.  The discharge conveyor also adjusts up or down.  The shrink tunnel (18”W x 8”H x 28”L) features a fully re-circulating chamber with live roller rod conveyor.  A convenience crank handle allows the operator to move the tunnel up or down to match sealer conveyor height.  Unibody frame makes this unit easy to move around.  Includes one 8ft. power cord.  Capable of 10-12 packages/minutes.

FEATURES (L-BAR)

• Micro-Knife band ribbon

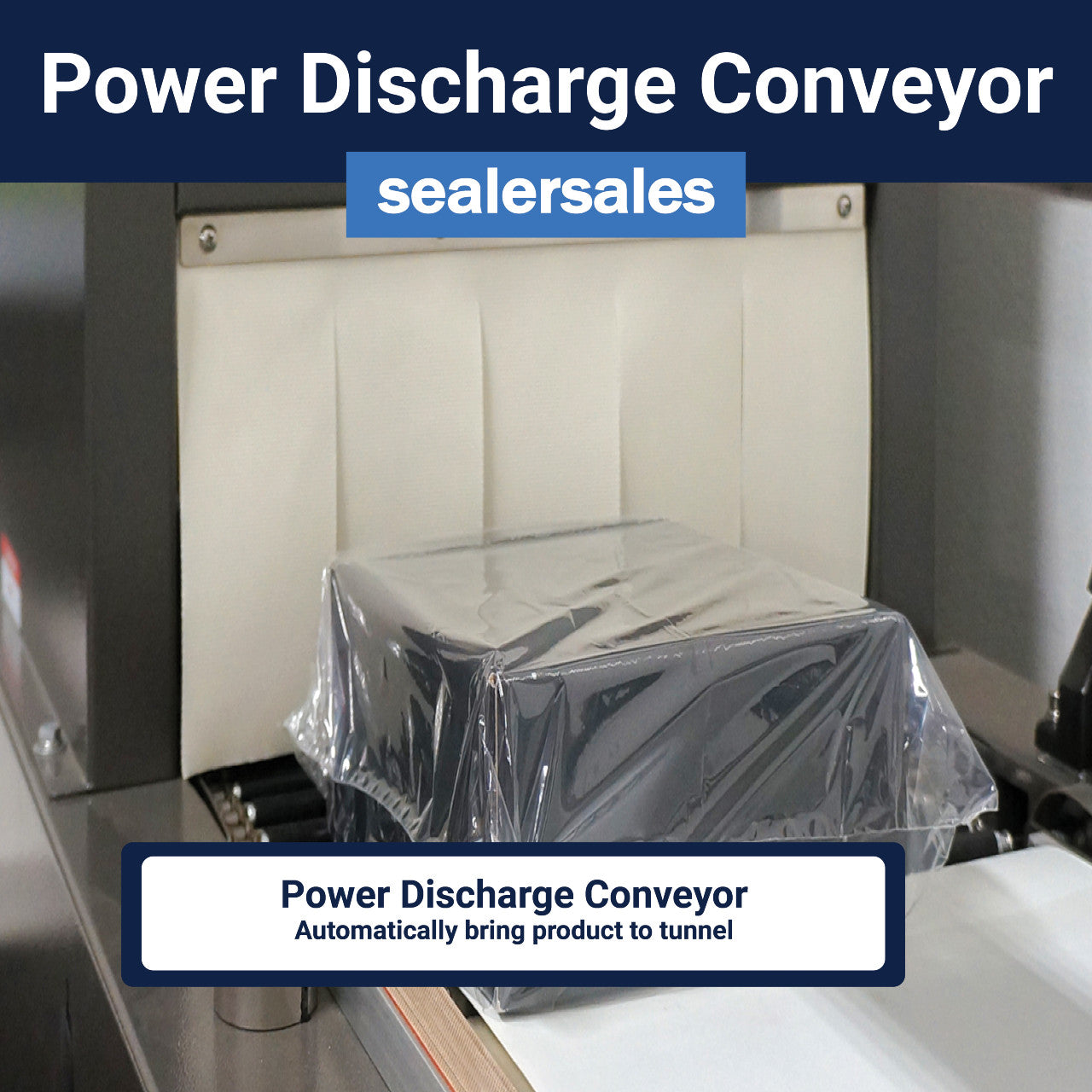

• Power belted discharge conveyor

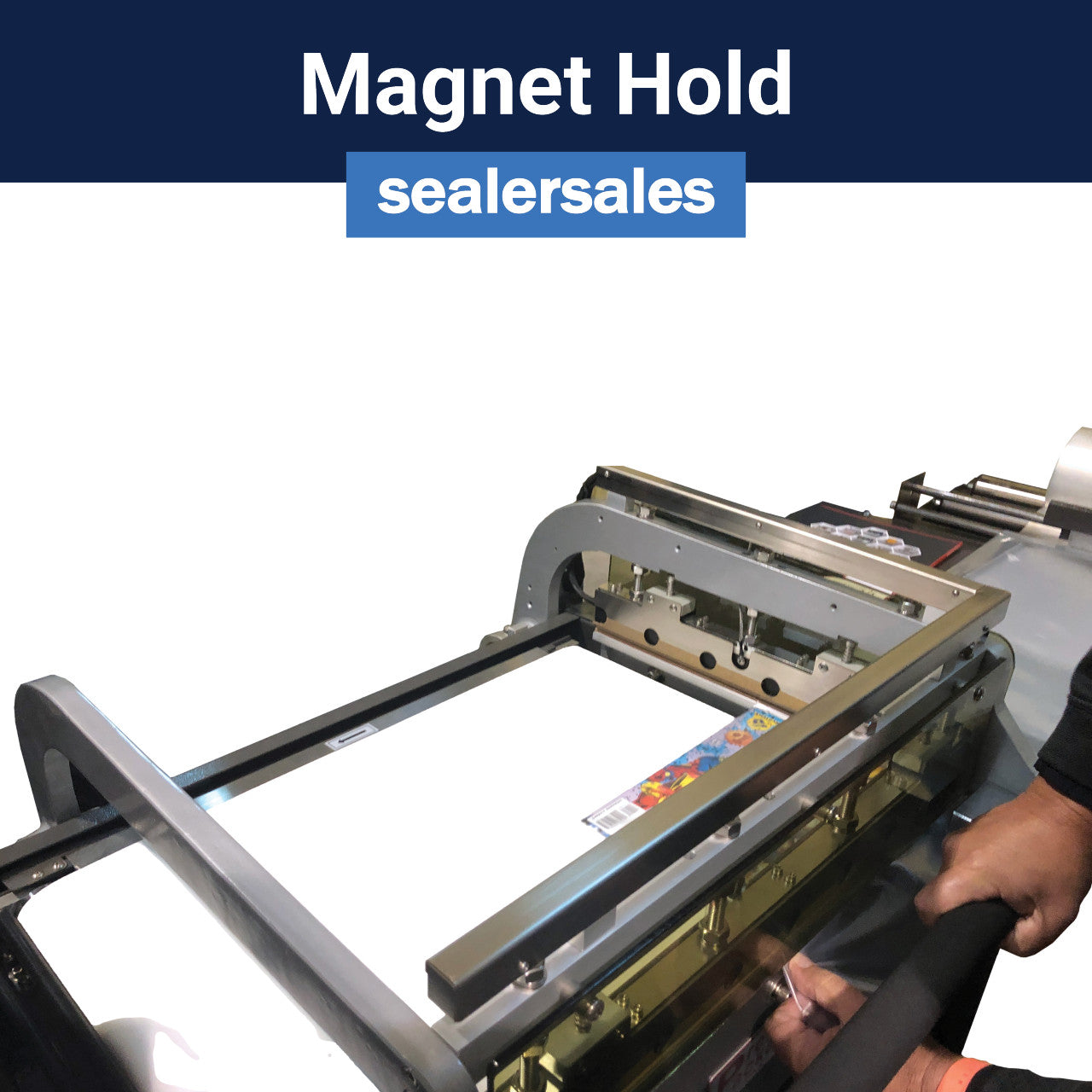

• Dual magnet clamping

• Pin perforated hole punch

• Variable dwell/seal time

• Variable conveyor time

• Stainless steel compensators

• Seal size:  16”W x 22”L

• Seal head return cylinder

• Stainless steel film clamps

• Locking casters

• Linear bearings allow movement forward or backward

• Easy load film cradle with brake

• Recommended film:  POF (PVC not recommended)

FEATURES (SHRINK TUNNEL)

• Fully re-circulating air chamber

• Live or dead roller rod conveyor

• Digital temperature control

• Adjustable air velocity control

• State of the art AC variable speed drive

• Chromed conveyor rollers and shafts (no rust)

• Automatic tunnel cool down with shut off

• Sealed bearings on drive and idler shafts

• Chamber size:  18”W x 8”H x 28”L

• Quietest tunnel on the market

• Heats up to 300ºF in less than 10 minutes

• Thermal overload protection on all motors

• Anti-jam safety feature on conveyor

• Easily adjustable crank handle allows for tunnel height   adjustment
