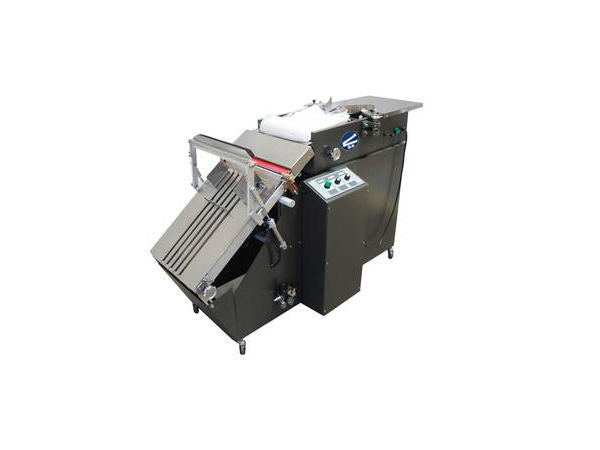

SS-615/1620 16" x 20" Bag Drop Sealer w/ Bag Opener

Combining our drop sealer with a bag opener into one compact, portable unit. Operator simply loads a stack of bags into bag magazine on the bag opener, a self generating blower forces air into the bag for easy loading. Once filled, the bag is stripped forward and the next bag pops open. The operator simply allows the filled bag to slide down the drop sealer to a set of holding pins pre-adjusted for the bag length. A photo eye activates the pneumatically powered seal bar to close, sealing the bag. As the bag is sealed, a cutting bar strips away the excess material above the seal, the seal bar automatically opens and a jet of air clears away the scrap. The holding pins retract allowing the sealed package to slide off the machine then automatically return to the up position and the machine is ready for the next package.

FEATURES:

• Seals up to 10mil total thickness
• Separate controls for seal temperature and seal time
• Hand wheel adjustment instantly adjusts seal bag location
• Adjustable table depth to accommodate different size items
• Features a pneumatic seal bar with air eject to quickly seal and remove excess trim scrap
• Up to 25 cycles per minute depending on size of bag and operator dexterity
• Uses wicketed bags up to 16” or 20” depending on model
• Products 1/8” seal widths
• 110V,  2 CFM at 80 PSI air required
