Sealer Sales, Inc.

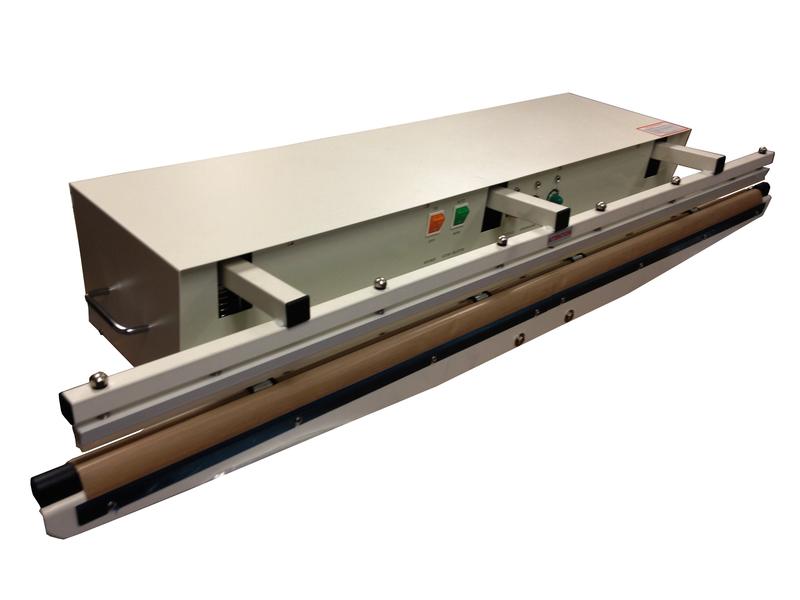

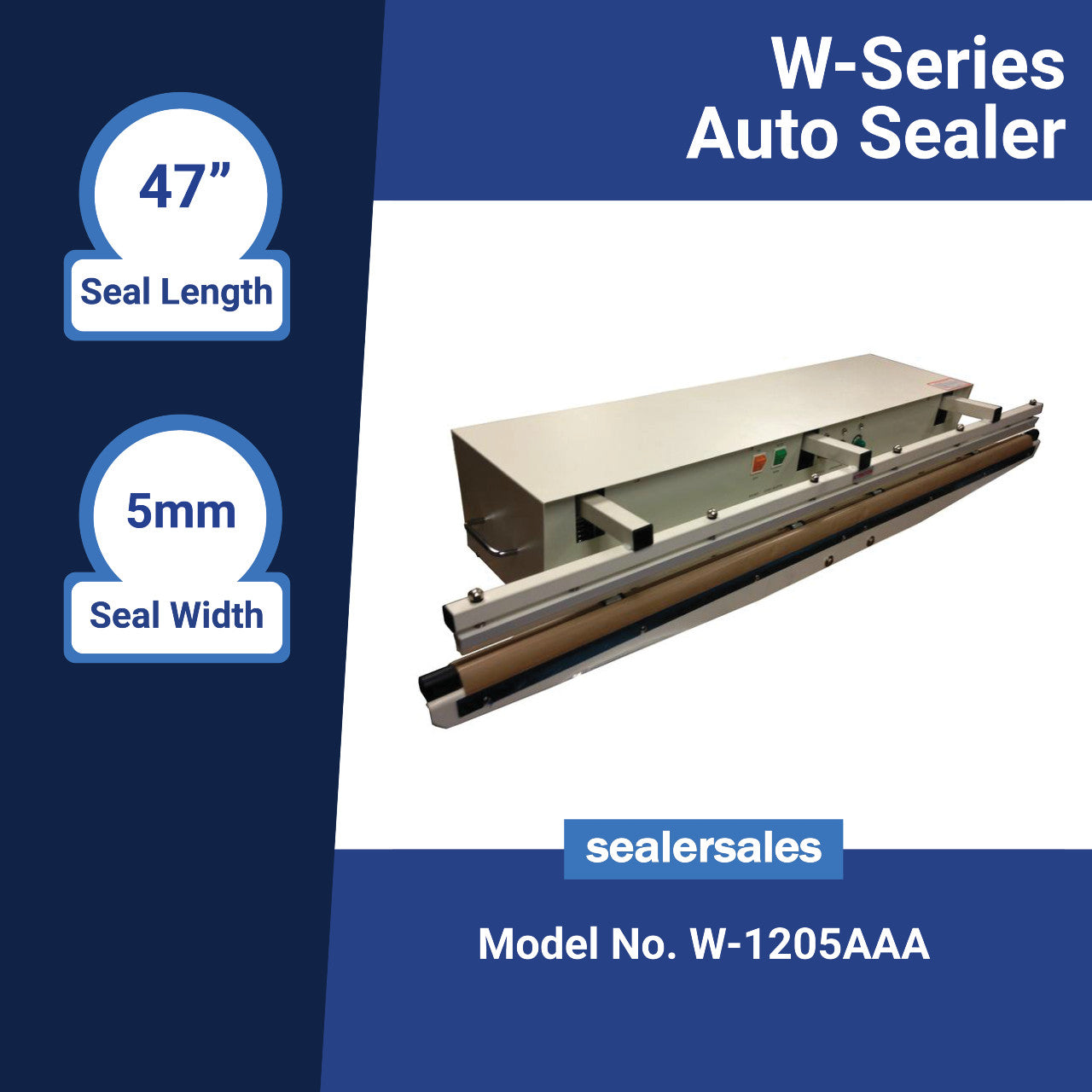

W-1205AAA: 47" W-Series Automatic Impulse Sealer w/ 5mm Seal Width

W-1205AAA: 47" W-Series Automatic Impulse Sealer w/ 5mm Seal Width

Regular price $2,230.74
Regular price Sale price $2,230.74
Sale Sold out

W-Series extra wide automatic sealers are designed for the continuous sealing of thermoplastic materials.  The W-1205AAA is equipped to seal materials up to 47" wide and 15mil total thickness.  Unit is controlled by a plug-in transistorized circuit board.  Equipped with an electronic timer and electromagnet, once correct settings have been established, consistent seals will be maintained automatically.


  • Automatic impulse sealing with precise electronic control

  • Dual mode operation: automatic or manual

  • Foot switch allows both hands to be free

  • 3 separate control settings for sealing time, recycle time, and congealing time to produce consistent seals

  • Includes electric foot switch and worktable

  • Equipped with two electromagnets to ensure stable pressure for the extra-wide seal bars

  • Seal Length:  47" / 1200mm

  • Seal Width: 5mm

The manufacturer's replacement kit includes 2 heating elements.

Easy to operate.

For automatic operation, set the control on auto.  Adjust the sealing time (heating time), congealing time (cooling time), and recycle time (automatic operation of jaws).  Insert material to be sealed and when jaw opens, remove sealed material.

For manual operation, set the control to manual.  Insert the material to be sealed.  Press down on the foot switch to activate the sealing bar.

h:  24" / 600mm

  • Seal Width: 5mm
