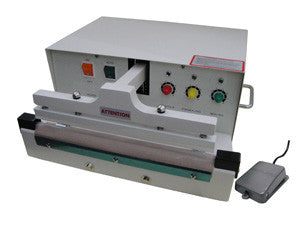

W-6010A:  24" W-Series Automatic Impulse Sealer w/ 10mm Seal Width

W-6010A: 24" W-Series Automatic Impulse Sealer w/ 10mm Seal Width

Regular price $1,339.50 Sale

W-Series automatic sealers are designed for the continuous sealing of thermoplastic materials.  The W-4510A is equipped to seal materials up to 24" wide and 20mil total thickness.  Unit is controlled by a plug-in transistorized circuit board.  Equipped with an electronic timer and electromagnet, once correct settings have been established, consistent seals will be maintained automatically.

FEATURES:

  • Automatic impulse sealing with precise electronic control

  • Dual mode operation: automatic or manual

  • Foot switch allows both hands to be free

  • 3 separate control settings for sealing time, recycle time, and congealing time to produce consistent seals

  • Includes electric foot switch and worktable

  • Seal Length:  24" / 600mm

  • Seal Width: 10mm

  • Special Order Unit

The manufacturer's replacement kit includes 2 heating elements.

Easy to operate.

For automatic operation, set the control on auto.  Adjust the sealing time (heating time), congealing time (cooling time), and recycle time (automatic operation of jaws).  Insert material to be sealed and when jaw opens, remove sealed material.

For manual operation, set the control to manual.  Insert the material to be sealed.  Press down on the foot switch to activate the sealing bar.


    Model # Seal Length Seal Width Power Weight Dimensions
    W-300A 12" 2.7MM 450W 50LBS 17" x 14" x 8"
    W-305A 12" 5MM 600W 52LBS 17" x 14" x 8"
    W-3010A 12" 10MM 1000W 55LBS 17" x 14" x 8"
    W-450A 18" 2.7MM 600W 56LBS 21" x 14" x 8"
    W-455A 18" 5MM 800W 59LBS 21" x 14" x 8"
    W-4510A* 18" 10MM 2654W 59LBS 21" x 14" x 8"
    W-600A 24" 2.7MM 800W 68LBS 27" x 14" x 8"
    W-605A 24" 5MM 1300W 70LBS 27" x 14" x 8"
    W-6010A* 24" 10MM 3080W 72LBS 27" x 14" x 8"
    W-755AA 30" 5MM 2600W 82LBS 33" x 14" x 10"
